HyperVap Concentrator(HV-300)

Technical Specifications

Sample Capacity
Number of samples
Sample volume
Gas
Pressure
Operating gas pressure
Pressure control
Time length of initial pressure
Time control
Water bath temperature
Forced evacuation of vapor gas
Power
Dimension (mm)
Weight 		6~32
5 ㎖ ~ 300 ㎖
Compressed air, Nitrogen, etc
15~50 psi
Automated 2 step control
(initial & operating pressure)
~99 min
~999 min (4 independent)
~99°C
Yes (by fan)
220 VAC, 350 VA max
590(w) x 340(d) x 320(h)
26.5 kg

Click Here to download a printable version of HyperVap Concentrator(HV-300) specification sheet in PDF format.

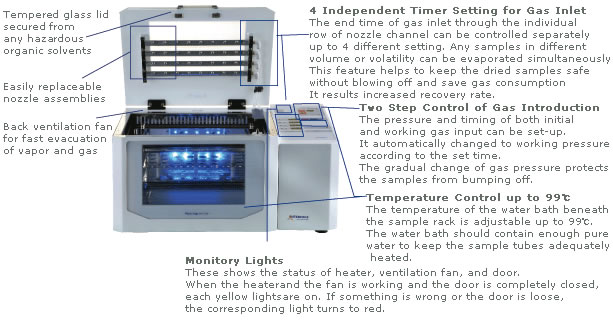

Features
• Fast and economic concentration through efficient control of gas inlet
• Specially designed nozzle generates semi-helical air/gas flow to make moresurface area & consequently helps faster concentration.
• Two step control of gas introduction.
• 4 independent timer settings for the gas inlet.
• Simultaneous concentration of up to 32 samples at 4 different conditions (4 x 8).
• Diverse racks available for various sizes of sample containers.



Diverse Types of Racks




Available Nozzles for Tube Types
Type of Nozzel(lid)
4 x 8
3 x 6
3 x 5
3 x 5
Type ofApplicable Tubes
24 x 120 mm
16 x 100 mm
15 x 120 mm
15 x 70 mm
30 x 120 mm
38 x 140 mm
72 x 140 mm


Concentration Result of HyperVap
PressureSolvents
40 psi
30 psi
20 psi
Hexane
1:50
2:10
3:20
Methano
5:10
6:30
9:50
Acetonitrile
5:45
7:10
11:40
Ethanol
6:10
8:30
15:30
